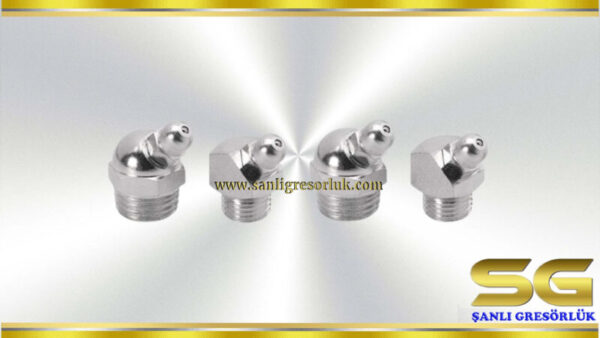

Ball-Type grease nipples type E (K2) DIN 3402 45°
Straight version, zinc-plated steel.
Ball-Type grease nipples type E (K2) DIN 3402 45°3402 45 °SANLI grease nipples ball-type nipples are suitable for all standard lubrication points, which have to be frequently lubricated in a reliably way. They are more and more often replaced by hyraulic-type grease nipples according to DIN 71412 due to their manifold application purposes.
In general, our ball-type grease nipples according to DIN are made of steel, zinc-plated and passivated, and they are featured with a tapered thread.
The head diameter is 6.5 (-0.2) mm /0.256″ – 0.008″.
We offer various standard types also in brass or stainless steel V2A/V4A. Of course, our ball-type grease nipples are also available in different angle versions, or as drive-in type.
Upon request,SANLI manufactures ball-type nipples in further versions, with respect to e. g.
thread form (e. g. with cylindrical thread)
different opening pressure
surface colour (e. g. yellow passivated)
further surface treatment etc.
