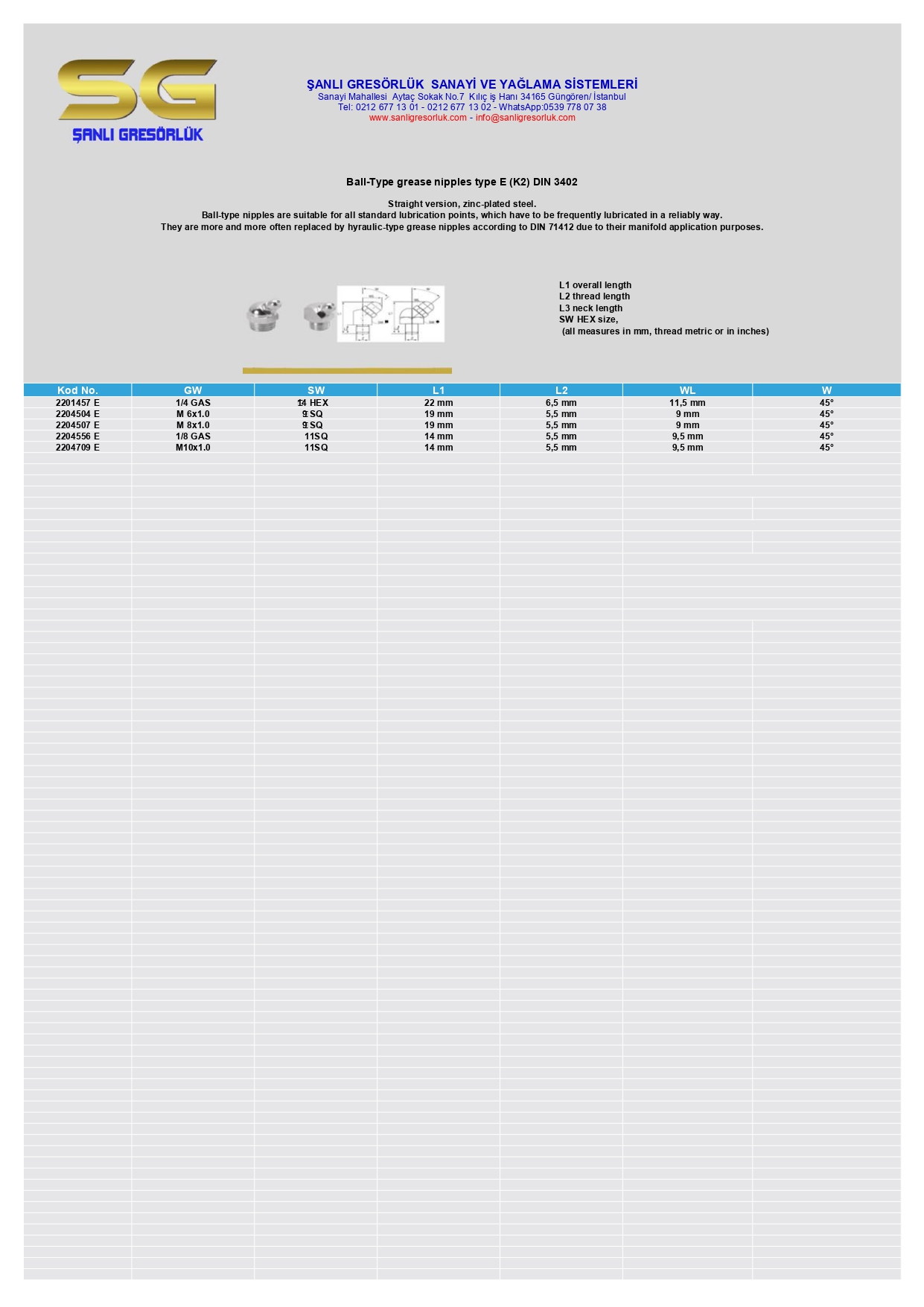

Ball-Type grease nipples type E (K2) DIN 3402 45°

Description

Ball-Type grease nipples type E (K2) DIN 3402 45°
Straight version, zinc-plated steel.

Ball-Type grease nipples type E (K2) DIN 3402 45°

APPLICATION AREA
SANLI ball-type nipples are suitable for all standard lubrication points, which have to be frequently lubricated in a reliably way. They are more and more often replaced by hyraulic-type grease nipples according to DIN 71412 due to their manifold application purposes.

VERSIONS
In general, our ball-type grease nipples according to DIN are made of steel, zinc-plated and passivated, and they are featured with a tapered thread.
The head diameter is 6.5 (-0.2) mm /0.256″ – 0.008″.
We offer various standard types also in brass or stainless steel V2A/V4A. Of course, our ball-type grease nipples are also available in different angle versions, or as drive-in type.
Upon request, SANLI manufactures ball-type nipples in further versions, with respect to e. g.
dimension
material
thread size
thread form (e. g. with cylindrical thread)
different opening pressure
surface colour (e. g. yellow passivated)
further surface treatment
etc.

Ball-Type grease nipples type E (K2) DIN 3402 45°
Straight version, zinc-plated steel.

OPERATING INSTRUCTIONS

As suitable lubricating nozzle, we recommend our hollow-type nozzles or hydraulic nozzles by using our push-type grease guns type A+B.
